Description

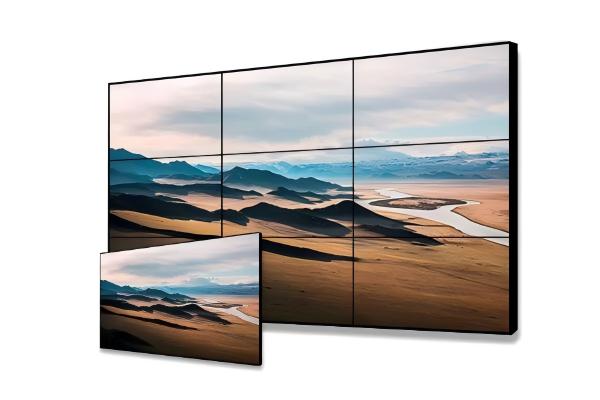

4K Professional Video Wall Display
The 65-inch LCD video wall screen is designed for professional large-screen visualization in control rooms, monitoring centers, transportation facilities, factories, commercial buildings, and public service environments. It combines 4K UHD resolution, a narrow 3.5 mm bezel, wide viewing angles, flexible connectivity, and reliable long-term operation for applications requiring clear and continuous visual information.
With a 65-inch commercial-grade LCD panel and 3840 × 2160 4K resolution, the display delivers detailed images and sharp text across large-format applications. It is suitable for surveillance monitoring, command and dispatch, meetings, information display, advertising, and centralized visual management.
3.5 mm Narrow Bezel for Video Wall Splicing
The screen features a 3.5 mm physical bezel gap, providing a clean appearance when multiple displays are installed together. The narrow bezel helps reduce visual interruption between adjacent panels, making it suitable for professional video wall configurations where multiple screens need to work as one large display surface.
Its 500 cd/m² brightness and 4000:1 contrast ratio provide clear image layers and strong visual definition. With a color depth of 16.7 million colors, the display can reproduce rich and natural image content for monitoring, presentations, promotional materials, and other professional applications.
Wide Viewing Angle and Smooth Display
The 178° horizontal and 178° vertical viewing angle allows content to remain visible from different positions within the viewing area. This is particularly useful in control rooms, meeting spaces, security centers, and public facilities where several users may view the screen simultaneously.
A 12 ms response time helps maintain stable image presentation for video, surveillance feeds, and other dynamic content. Combined with 4K resolution, the display provides a detailed viewing experience for large-screen visualization.
Designed for 24/7 Operation
Built for professional environments, the 65-inch LCD video wall screen supports continuous operation and has a rated service life of up to 50,000 hours. It operates within a temperature range of 0–40°C and a humidity range of 20%–90% RH under non-condensing conditions.
This long-term operating capability makes the display suitable for applications that require extended daily use, including public security monitoring, factory management, transportation supervision, property management, and dispatch centers.
Multiple Interfaces for Flexible Integration
The display provides a broad range of input options, including DVI, HDMI, VGA, DisplayPort, and AV, allowing it to connect with different video sources and professional equipment. A USB port provides additional connectivity, while RS-232 IN, dual RS-232 OUT, and IR interfaces support centralized control and multi-screen management.
These interfaces make the screen adaptable to different video wall configurations and professional display environments.
Key Specifications
| Item | Parameter |
|---|---|
| Panel Size | 65 inches |
| Resolution | 3840 × 2160 |
| Physical Bezel Gap | 3.5 mm |
| Color Depth | 16.7M |
| Brightness | 500 cd/m² |
| Contrast Ratio | 4000:1 |
| Response Time | 12 ms |
| Viewing Angle | 178° / 178° |
| Video Input | DVI, HDMI, VGA, DP, AV |
| USB | 1 × USB |
| Control Interface | RS-232 IN, 2 × RS-232 OUT, IR |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | ≤270W |
| Service Life | 50,000 hours |
| Dimensions | 1432.6 × 807.6 × 129.9 mm |
| Net Weight | 30 kg |
| Operating Temperature | 0–40°C |
| Operating Humidity | 20%–90% RH, Non-condensing |
Applications
The 65-inch LCD video wall screen is suitable for public security centers, transportation hubs, factories, commercial buildings, parks, property management centers, meeting rooms, and dispatch facilities. Its 4K resolution, narrow bezel, wide viewing angle, long service life, and extensive interface configuration provide a practical display solution for professional video walls, monitoring, meetings, information visualization, and promotional applications.
