Description
Product Introduction

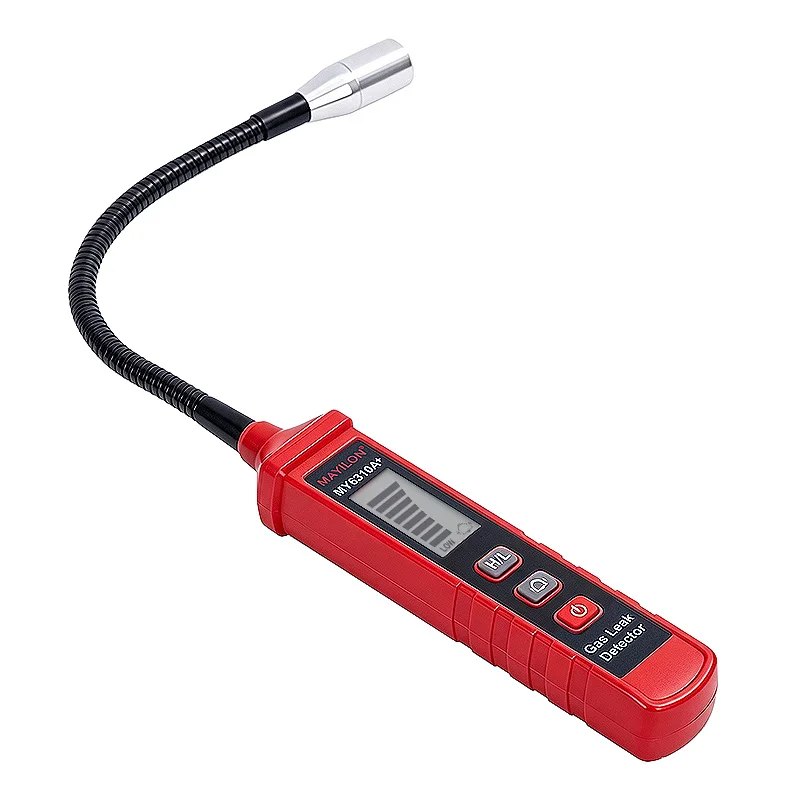

Gas Leak Tester <50PPM Color Backlight, MY6310A is a lightweight portable combustible gas detector designed for fast gas leak inspection in homes, kitchens, recreational vehicles, boats, pipelines and other applicable environments.
With sensitivity of less than 50PPM, the detector is designed to identify low-concentration combustible gas leaks. Its LCD screen provides real-time concentration readings, while the dual-color backlight offers an intuitive visual indication: green for normal conditions and red for an alarm condition.
The MY6310A combines a compact 170 × 33 × 26mm body with a weight of only 35g, making it convenient for technicians, maintenance personnel and household users to carry during inspection tasks. The flexible probe can be bent to reach different positions, helping users inspect areas that may be difficult to access with a rigid probe.
Dongguan Mayilon Electronic Technology Co., Ltd. provides the MY6310A combustible gas detector for applications requiring portable gas leak inspection and visual and audible alarm functions.
Product Highlights
<50PPM High Sensitivity
The MY6310A is designed with high sensitivity below 50PPM to help detect small concentrations of combustible gas during inspection. It can be used for locating potential leakage points in applicable environments.
Dual-Color LCD Backlight
The LCD display combines real-time concentration information with a dual-color backlight. The green backlight indicates normal conditions, while the red backlight provides a clear visual warning when the detected gas concentration reaches the alarm condition.
Audible Buzzer Alarm
An integrated buzzer provides an audible warning when combustible gas is detected. The alarm response can become more urgent as the detected gas concentration increases, helping users notice potential leakage conditions.
Real-Time LCD Display
The clear LCD screen provides gas concentration readings during inspection, allowing users to monitor detected levels directly from the instrument.
Flexible Extended Probe
The universal flexible probe can be bent and adjusted to different angles. This design helps the detector reach narrow, recessed or otherwise difficult-to-access inspection areas.
One-Button Operation
The detector is designed for simple operation. Users can switch on the instrument and perform gas leak detection without complicated setup procedures.
Compact & Lightweight Design
With a weight of approximately 35g and dimensions of 170 × 33 × 26mm, the MY6310A is designed for portable inspection work and can be easily carried in a pocket, tool bag or equipment case.
Automatic Power-Off
The detector automatically shuts down after approximately 3 minutes of inactivity. This power-saving function helps reduce unnecessary battery consumption when the instrument is not being used.
Low-Battery Indication
A low-battery warning helps users identify when the batteries need replacement, reducing the possibility of unexpected power loss during inspection.
Full-Scale Overload Protection
The instrument incorporates full-scale overload protection to help protect the measuring system when detected concentration reaches an excessive level.
Secure Battery Cover
The battery compartment is secured with screws to help prevent the battery cover from coming loose during normal handling and use.
Product Specifications
| Item | Specification |
|---|---|
| Product Name | Gas Leak Tester <50PPM Color Backlight |
| Model | MY6310A |
| Product Type | Combustible Gas Detector |
| Sensitivity | <50PPM |
| Detection Range | 50–1000PPM |
| Display | LCD Display |
| Backlight | Dual-Color Backlight |
| Alarm | Audible Buzzer Alarm |
| Probe | Flexible Extended Probe |
| Operation | One-Button Detection |
| Automatic Shutdown | Approximately 3 Minutes |
| Low Battery Warning | Supported |
| Overload Protection | Full-Scale Overload Protection |
| Dimensions | 170 × 33 × 26mm |
| Weight | Approximately 35g |
| Battery | 2 Batteries |
| Battery Cover | Screw-Secured |
| Accessories | Screwdriver + 2 Batteries |
| Certification | EN61326-1 |
| Application | Combustible Gas Leak Detection |
Detection Function
The MY6310A is intended for detecting various types of combustible gases within its applicable detection range. When combustible gas is detected, the instrument provides an audible buzzer alarm while the LCD backlight changes to provide a visual warning.
The combination of concentration display, visual alarm and audible alarm allows users to monitor gas conditions through multiple indications. This is useful for routine inspection, maintenance and leak-checking tasks.
The flexible probe provides additional access to different measurement positions. Users can adjust the probe curvature according to the inspection environment, making it easier to check narrow spaces, corners and other locations where direct access may be inconvenient.
Application Areas
The MY6310A can be used for combustible gas leak inspection in various environments, including:
-
Home Gas Safety: Routine checks around applicable household gas equipment and connections
-
Kitchen Inspection: Checking applicable gas appliances, connections and surrounding areas
-
RV Inspection: Portable gas leak checking for recreational vehicles
-
Boat Inspection: Inspection of applicable combustible gas systems on boats
-
Pipeline Inspection: Preliminary leak detection around applicable pipeline connections
-
Equipment Maintenance: Portable inspection during equipment servicing and maintenance
-
Facility Inspection: Routine checks in applicable industrial or commercial environments
-
Professional Leak Detection: Portable gas inspection tasks performed by technicians
The detector should be used according to the applicable gas type, detection range, operating instructions and safety requirements.
Portable Design for Field Inspection
At only approximately 35g, the MY6310A is designed for users who need to carry a gas detector between multiple inspection locations. Its compact 170 × 33 × 26mm housing takes up limited space in a tool bag or equipment case.
The flexible probe extends the practical inspection area without requiring users to reposition the entire instrument. This is especially useful when checking corners, narrow gaps, recessed areas or locations that are difficult to reach directly.
Alarm & Safety Indications
The MY6310A provides both visual and audible warnings to help users identify detected combustible gas.
-
Green Backlight: Normal indication
-
Red Backlight: Visual alarm indication
-
Buzzer: Audible warning when combustible gas is detected
-
LCD Reading: Real-time concentration display
-
Low Battery Warning: Indicates the need for battery replacement
-
Automatic Shutdown: Helps conserve battery power after approximately 3 minutes without operation
These functions provide straightforward feedback during gas leak inspection.
Battery & Power Management
The MY6310A operates with two batteries. The battery compartment is secured with screws, and the package includes a screwdriver for battery-related access.
To reduce unnecessary battery consumption, the detector automatically powers off after approximately three minutes of inactivity. A low-battery indication also helps users identify when the power source needs to be replaced.
For reliable inspection, users should ensure that the batteries have sufficient charge before starting detection work.
Accessories
The standard accessories include:
-
2 batteries
-
Screwdriver
Additional accessories or packaging requirements can be discussed according to the specific order and project requirements.
Certification & Quality
The MY6310A is designed for portable combustible gas detection and is certified to EN61326-1. The instrument incorporates multiple practical functions, including overload protection, low-battery indication and automatic shutdown.
For professional applications, users should confirm that the detector's applicable gas types, detection range and operating conditions meet the requirements of the intended inspection environment before use.
Why Choose MY6310A?
The MY6310A combines high sensitivity, a compact structure and multiple alarm functions in a portable gas detection instrument.
Key benefits include:
-
<50PPM sensitivity
-
50–1000PPM detection range
-
Dual-color LCD backlight
-
Real-time concentration display
-
Audible buzzer alarm
-
Flexible extended probe
-
One-button operation
-
Approximately 35g lightweight body
-
Automatic shutdown
-
Low-battery warning
-
Full-scale overload protection
-
EN61326-1 certification
-
Compact 170 × 33 × 26mm dimensions
This combination makes the instrument suitable for users who need a convenient detector for routine combustible gas leak inspection.
B2B Procurement & Product Information
For distributors, safety equipment suppliers, maintenance companies and other B2B buyers, the MY6310A provides a compact solution for portable combustible gas detection.
Before purchasing, buyers should confirm the required detection range, applicable combustible gas types, operating environment and quantity requirements. For professional applications, the detector should be selected according to the specific safety and measurement requirements of the end application.
Dongguan Mayilon Electronic Technology Co., Ltd. can provide product information and cooperation support for customers sourcing portable combustible gas detectors.
FAQ
Q: What is the sensitivity of the MY6310A?
A: The MY6310A has a sensitivity of less than 50PPM.
Q: What is the detection range?
A: The specified detection range is 50–1000PPM.
Q: Does the detector have an LCD display?
A: Yes. The MY6310A features an LCD display for real-time concentration readings.
Q: Does it have a visual alarm?
A: Yes. The dual-color backlight provides a visual indication, with green for normal conditions and red for an alarm condition.
Q: Does the gas detector have an audible alarm?
A: Yes. An integrated buzzer provides an audible warning when combustible gas is detected.
Q: Is the probe flexible?
A: Yes. The extended probe can be bent and adjusted to different angles to help access various inspection locations.
Q: How heavy is the MY6310A?
A: The detector weighs approximately 35g, making it suitable for portable use.
Q: What are the dimensions?
A: The compact detector measures approximately 170 × 33 × 26mm.
Q: Does it automatically shut down?
A: Yes. The instrument automatically shuts down after approximately 3 minutes without operation to help conserve battery power.
Q: Does it indicate low battery?
A: Yes. The MY6310A provides a low-battery indication.
Q: What accessories are included?
A: The listed accessories include two batteries and a screwdriver.
Q: What certification does the product have?
A: The MY6310A is certified to EN61326-1.
Product Summary
The Gas Leak Tester <50PPM Color Backlight, MY6310A is a lightweight combustible gas detector combining <50PPM sensitivity, 50–1000PPM detection, LCD concentration display, dual-color visual alarm, buzzer warning and a flexible probe. Its compact design and automatic power-saving function make it suitable for portable inspection applications.
For B2B customers seeking a compact and practical combustible gas detection solution, Dongguan Mayilon Electronic Technology Co., Ltd. supports product sourcing and cooperation based on applicable project requirements.
Model: MY6310A
Type: Combustible Gas Detector
Sensitivity: <50PPM
Detection Range: 50–1000PPM
Display: LCD
Alarm: Dual-Color Backlight + Buzzer
Probe: Flexible Extended Probe
Weight: Approx. 35g
Dimensions: 170 × 33 × 26mm
Certification: EN61326-1
