Description

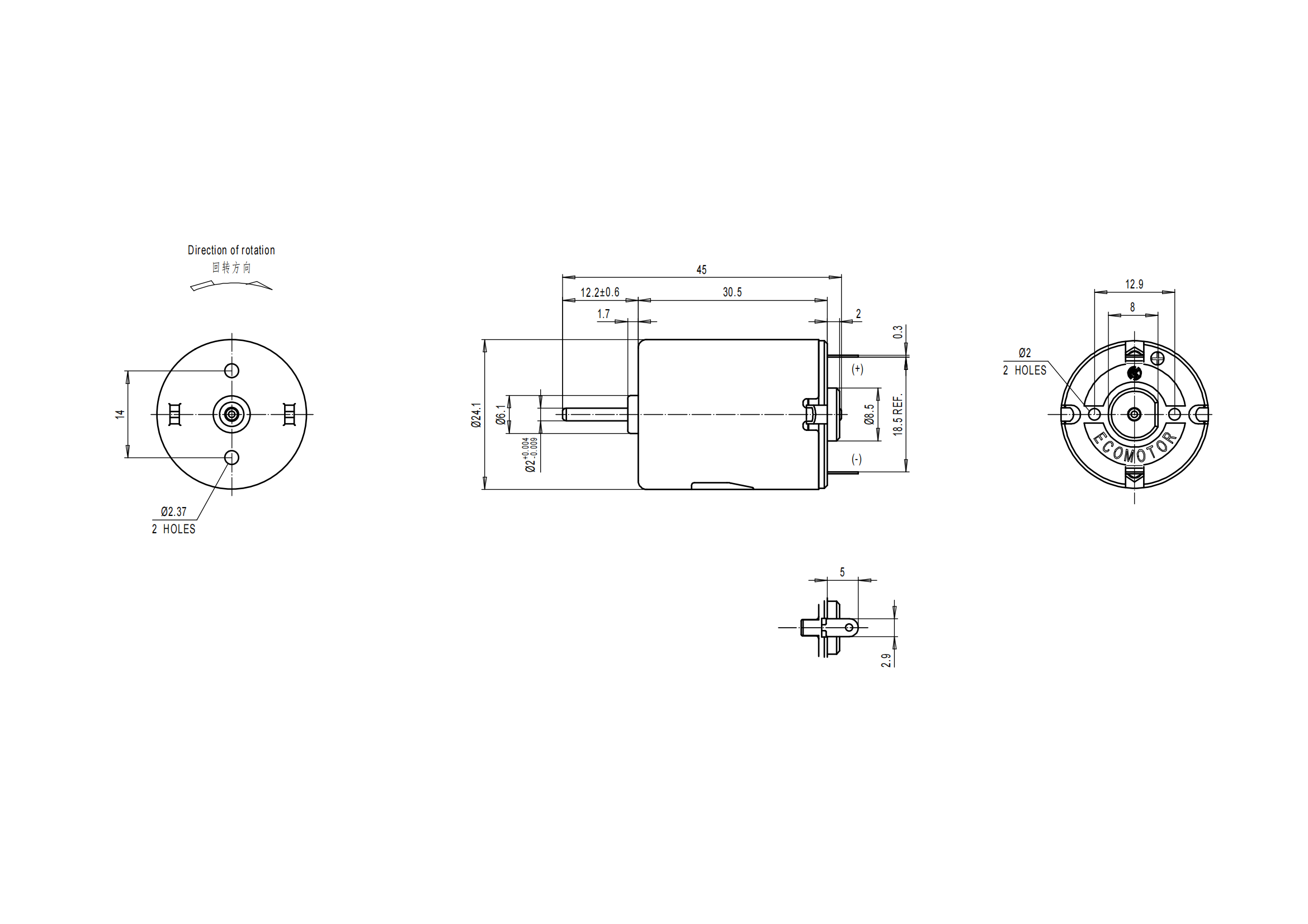

R280E Brushed DC Micro Motor Drawings And Product Performance Are As Follows:

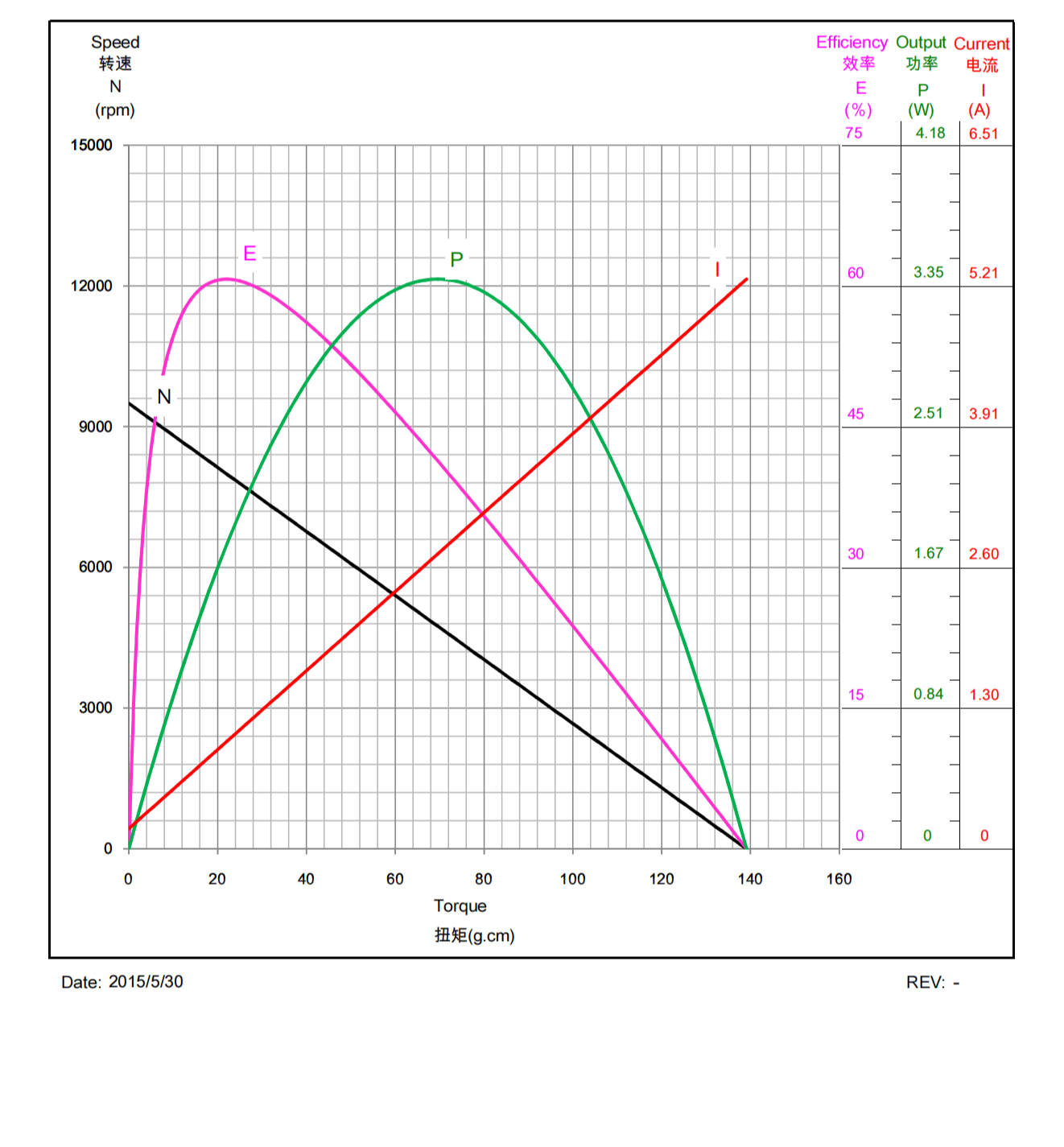

R280E-NN-3060 3V Toy Brushed Miniature DC Motor Performance Table
|
Model/ |
Voltage |
No Load |
At Maximum Efficiency |
At Maximum Output |
Stall |
||||||||
|
Current |
Speed |
Current |
Speed |
Torque |
Efficiency |
Current |
Speed |
Torque |
Output |
Current |
Torque |
||
|
V |
A |
rpm |
A |
rpm |
g.cm |
% |
A |
rpm |
g.cm |
W |
A |
g.cm |
|
|
R280E-NN-3060 |
3.0 |
0.186 |
9498 |
0.990 |
7996 |
22.0 |
60.7 |
2.729 |
4749 |
69.5 |
3.39 |
5.272 |
139.1 |

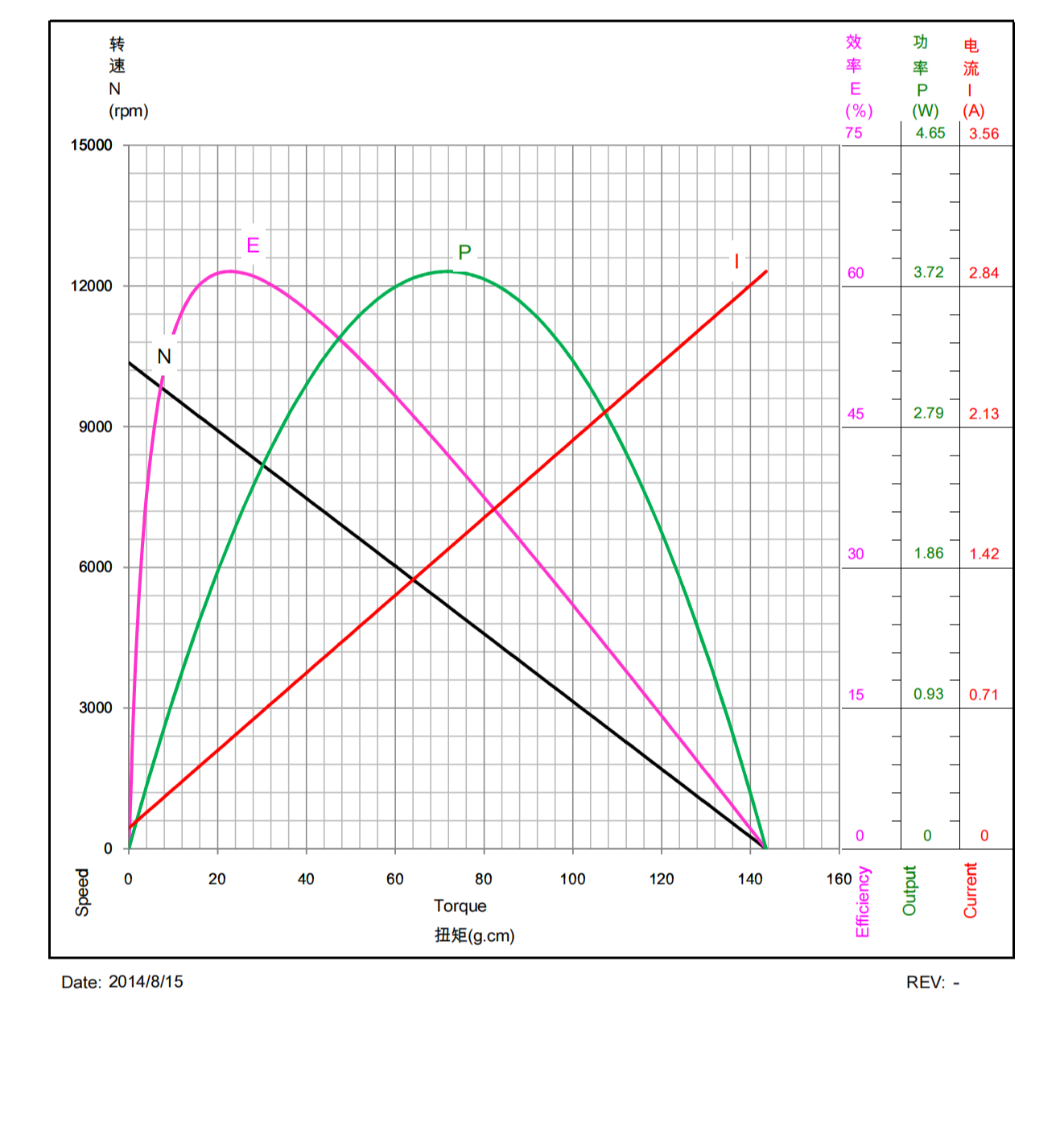

R280E-NN-21110 6V Toy Brushed Miniature DC Motor Performance Table
|
Model/ |
Voltage |
No Load |
At Maximum Efficiency |
At Maximum Output |
Stall |
||||||||
|
Current |
Speed |
Current |
Speed |
Torque |
Efficiency |
Current |
Speed |
Torque |
Output |
Current |
Torque |
||
|
V |
A |
rpm |
A |
rpm |
g.cm |
% |
A |
rpm |
g.cm |
W |
A |
g.cm |
|
|
R280E-NN-21110 |
6.0 |
0.105 |
10361 |
0.554 |
8709 |
22.9 |
61.5 |
1.512 |
5181 |
71.8 |
3.81 |
2.918 |
143.5 |
