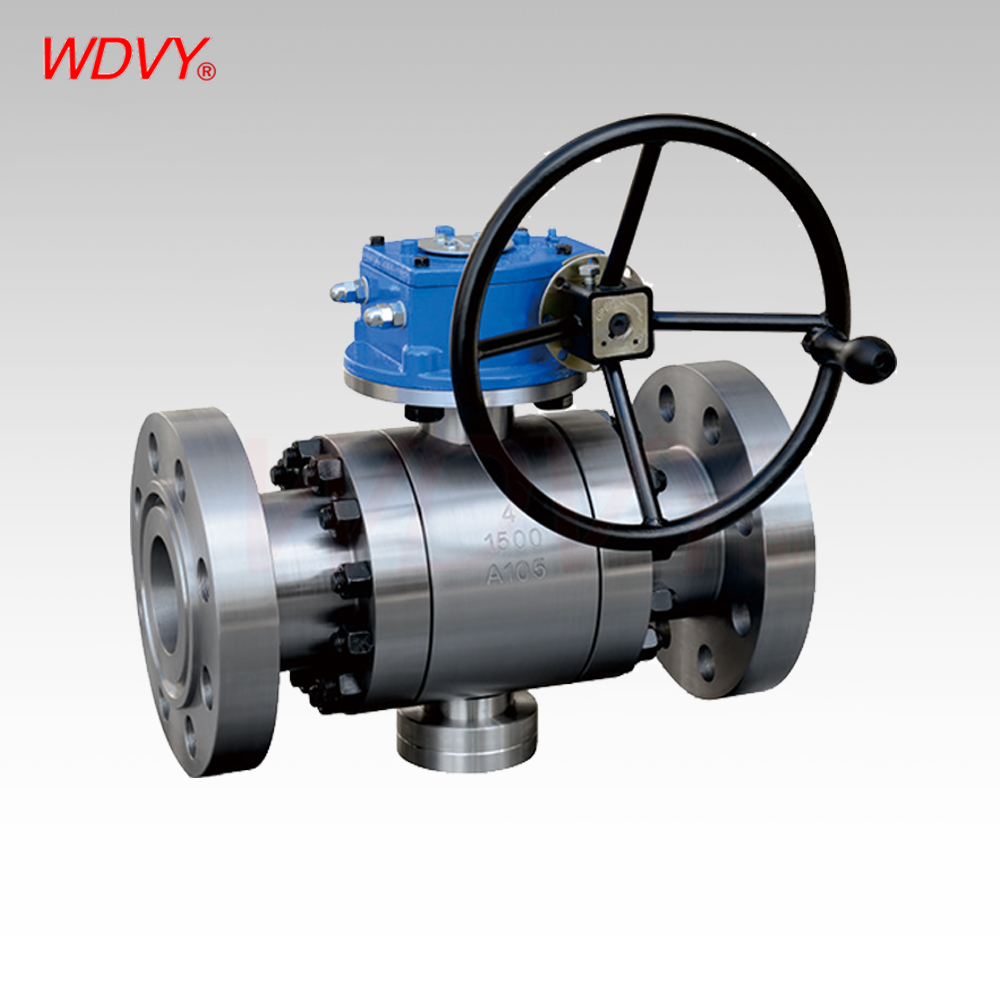

Trunnion Mounted Ball Valve – High-Performance Solutions from Wandong Valve Product
Wandong Valve Product offers a comprehensive range of Trunnion Mounted Ball Valves, engineered for superior performance in demanding industrial applications. As a leading China Trunnion Mounted Ball Valve manufacturer, we provide valves that ensure reliable sealing and efficient flow control in pipelines.
TRUNNION TYPE BALL VALVE Applications
Oil & Gas: Subsea pipelines, refinery process lines, and high-pressure gas transmission.
Chemical & Power Plants: Handling corrosive fluids (e.g., acids, ammonia) and superheated steam.
Cryogenic Systems: LNG storage, liquid nitrogen transport, and low-temperature processing
Trunnion Mounted Ball Valve Main Features
Fixed ball valves feature a stationary ball anchored by upper and lower stem bearings, ensuring stable sealing under high-pressure conditions. Unlike floating designs, the ball remains fixed while the seats absorb system pressure, making them ideal for large-diameter pipelines and extreme operational environments.
High-Pressure Reliability: Fixed trunnion structure withstands pressure surges and vibration.
Bidirectional Sealing: Uniform sealing performance in both flow directions.
Low Maintenance: Modular seat assemblies allow quick replacement without pipeline disassembly.
Trunnion Mounted Ball Valve Design Features:
Full port or reduced port
Trunnion-mounted ball
Blowout-proof stem
Double block & bleed
Emergency sealant injection
Cavity pressure self relief
Fire safe design to API 607
Trunnion-Mounted Ball: Dual stem supports minimize operational torque and prevent ball displacement under high pressure.
Double Block & Bleed (DBB): Integrated drain/vent ports enable safe maintenance and leakage verification.
Full-Bore or Reduced-Bore: Optimized flow paths for minimal pressure loss or throttling control.
Fire-Safe Design: Anti-static devices and fire-resistant graphite seals comply with API 607/6FA standards.
Trunnion Mounted Ball Valve Product details
Valve structure: Trunnion type Ball Valve
Size:1/2” ~ 48”
Pressure Rating: 150LB ~ 1500LB
Temperature: -196Deg. C ~ 600Deg. C
Material Available:
Valve Material: Stainless steel ASTM A182 F304 F304L F316/F316L/F51 F53 F55 Carbon steel ASTM A105, ASTM A350 LF2, Etc.
Seat Material: PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat
Operation:Wrench, Lever, Gearbox, Pneumatic actuator, Electric actuator, Etc.
Trunnion Mounted Ball Valve Technical Standard
Design Standard: API 6D, ASME B16.34, BS 5351, API 608, MSS SP-72
Face to Face: ASME B16.10, API 6D, EN 558
End Flange: ASME B16.34, DIN 2501
Buttwelding Ends: ASME B16.25
Inspection and Test: API 598, API 6D
Customization and Availability
-
Customized Trunnion Mounted Ball Valve: We offer tailored solutions to meet specific operational needs, including custom sizes, materials, and configurations.
-
Trunnion Mounted Ball Valve in Stock: A wide range of standard valves are available for immediate delivery, ensuring timely project execution.
-
Competitive Pricing: We provide attractive Trunnion Mounted Ball Valve prices, offering high-quality products at cost-effective rates.
-
Wholesale Options: Bulk purchasing options are available, making us a reliable Trunnion Mounted Ball Valve supplier for large-scale projects.
Choose Wandong Valve Product for your Trunnion Mounted Ball Valve needs and experience the perfect blend of quality, performance, and value.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional valve manufacturer with 15+ years of experience.
Q: What payment terms do you accept?
A: T/T (30% deposit, 70% before shipment), L/C at sight, Western Union.
Q: What's your packaging standard?
A: Standard export packaging with wooden cases/cartons, waterproof wrapping, and shockproof protection.
Q: What's your warranty policy?
A: 12-18 months warranty from shipment date, excluding normal wear and improper operation.
Q: What applications are your valves suitable for?
A: Our valves are widely used in:
– Oil & gas pipelines
– Chemical processing plants
– Water treatment systems
– Power generation facilities
– Pulp & Paper Manufacturing
Q: What certifications do your products have?
A: Our valves have ISO 9001, API 6D, CE, and other international certifications. We support OEM/ODM services.
Q: What materials do you use for valve production?
A: We use:
– Carbon steel, Stainless steel
– Bronze, brass
– Alloy steel, Monel alloy, Chromium-nickel-inconel alloy, Hastelloy alloy, Duplex stainless steel, Copper alloy and other special steels.
Q: What's your production lead time?
A: Standard products: 15-30 days after deposit
Customized products: 30-45 days (depending on complexity and quantity of valves)
Q: Do you provide installation guidance?
A: Yes, we provide detailed installation manuals, technical drawings, and online support.
