Description
Product Introduction:
The Pedestrian Crossing Traffic Controller is a specialized traffic signal control system designed for one-way street pedestrian crossing applications. It is available in two configurations: a 5-channel model and a 12-channel model. The 5-channel model supports single-stage pedestrian crossings and is ideal for basic crossing scenarios. The 12-channel model provides enhanced functionality, enabling two-stage pedestrian crossings and supporting multiple control modes such as networked operation, time-based scheduling, flashing yellow signals, and pedestrian-initiated crossing.
Functional Features
Precision-engineered for dedicated applications with enhanced operational stability
Specifically optimized for single-stage pedestrian crossings, this model offers a streamlined design, reliable performance, and cost-effective deployment.
User-friendly interface for improved maintenance efficiency

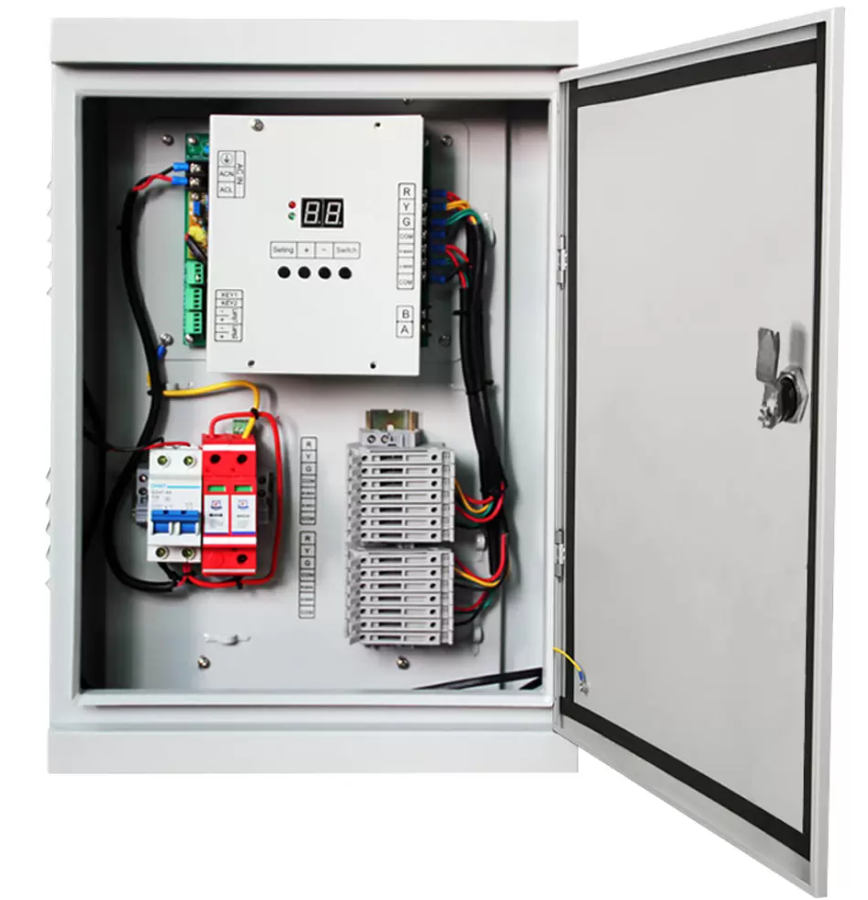

Features an integrated control panel that allows on-site configuration and debugging without the need for external tools, thereby enhancing maintenance efficiency.
Precision-engineered for dedicated applications with enhanced operational stability
Designed specifically for one-way street pedestrian crossing scenarios, this model delivers a simplified structure, stable performance, and high cost-effectiveness.
Intelligent networking with multi-mode control capabilities
Equipped with network connectivity and remote control functionality, it supports a variety of control modes including fixed-cycle timing, pedestrian-activated crossing, flashing yellow light, and remote command execution, effectively addressing diverse traffic management requirements.
| Product Model | XHJ-AW-GA-FM1002 | XHJ-BW-GA-FM100B |
| Enclosure Dimensions | L × W × H: 35 × 10 × 50 mm | L × W × H: 55 × 40 × 95 mm |
| Operating Voltage / Frequency | AC：85-264V/47-63Hz | AC：85-264V/47-63Hz |
| Signal Output | 5-output | 12-output |
| Communication Interface | RS485*1 | RJ45*1, RS232*1, RS485*1,4G/5G |
| Number of Signal Phases | 2 phase | 4 phase |
| Machine Standby Power Consumption | 15W | 15W |
| Drive Current per Channel | 3A | 3A |
| Surge Impulse Current per Channel | 160A | 160A |
| Insulation Resistance | ≥20MΩ | ≥20MΩ |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤95%RH | ≤95%RH |
| Protection Grade | IP55 | IP55 |
| Packaging Specifications | Dimensions (L × W × H): 57 × 40 × 17.5 cm, Weight: 14.65 ± 0.5 kg | Dimensions (L × W × H): 65 × 17 × 48 cm, Weight: 13.75kg ± 0.5 kg |
