Description

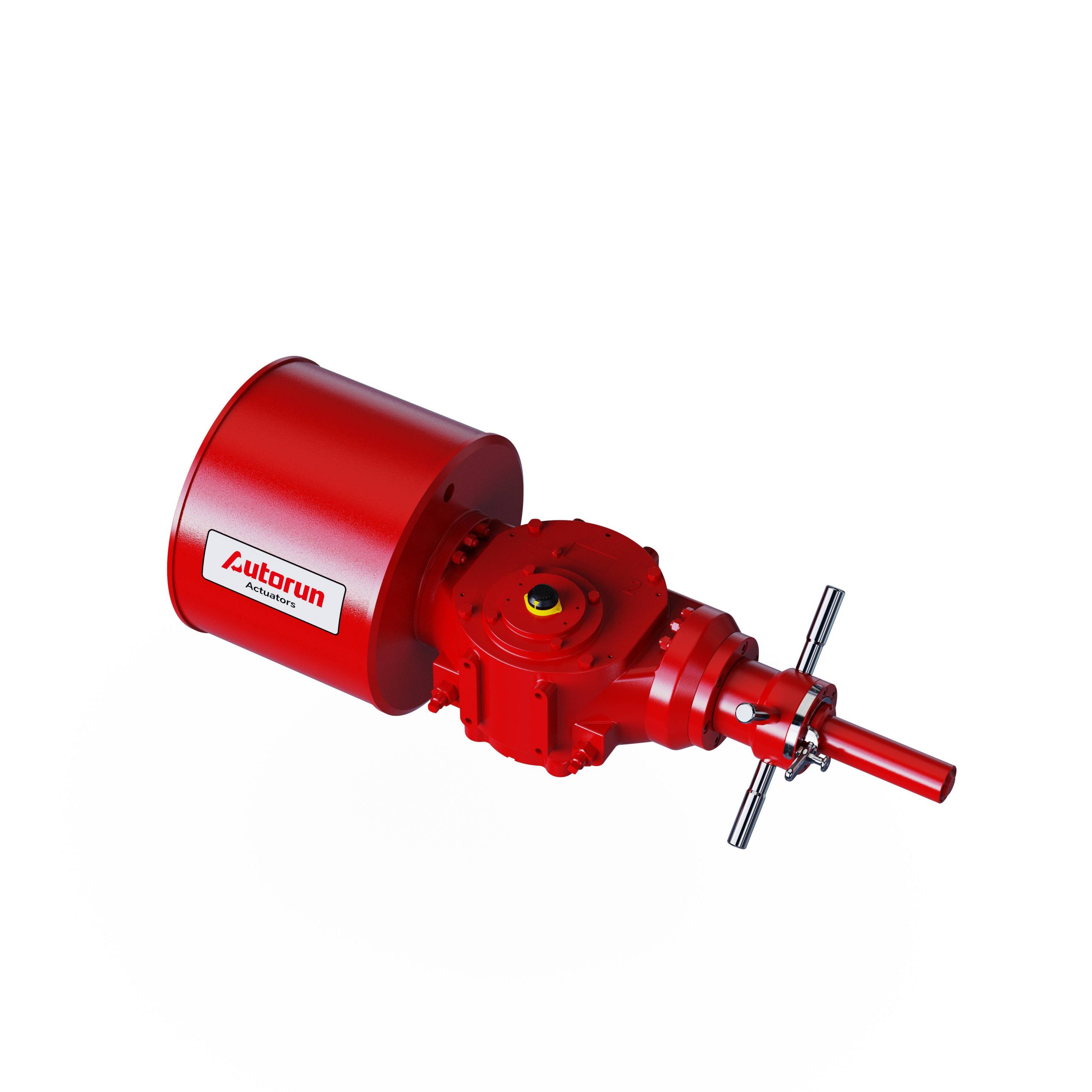

The Autorun Scotch yoke pneumatic actuator is specifically engineered as a heavy-duty solution for large valves. It is categorized into two variants according to the action mode, namely single-acting and double-acting. The particular model presented here pertains to the double-acting variety. The switching operation of this actuator is effected by the driving force of an air source. Additionally, the single-acting type is also offered for selection.
Features & Benefits
• R&D & Design：Autorun (exceptional design team + cutting-edge equipment) → modular design (cylinder/drive/spring modules) → diverse models, high adaptability.
•Customer Value：Delivers higher cost-effectiveness + operational convenience.
• Performance Capability：Custom-tailored for pneumatic control; withstands up to 145 psi (10 Bar); reliable operation: -46°C to 149°C (-51°F to 300°F).
Key Advantages
Angle Flexibility：0°–90° (±6° tolerance) → meets industrial process angle needs; flexible control across applications.
Pressure Adaptability：2–10bar (29–145psi) → suits diverse pressure conditions; ensures stable operation in all environments.
Internal Rod Design：Sleek, compact (smaller outer diameter vs. external rod designs); stabilizes piston, reduces wear → longer cylinder lifespan, reliable performance.
Specfications
|
Actuator Angle (Adjustable Range) |
0°–90° (±6°) |
|
Temperature Range |
-46°C to 149°C (-51°F to 300°F) |
|
Max Cylinder Output Torque (5bar) |
225364 N·m |
|
Allowable Air Source Pressure |
2bar–10bar (29psi–145psi) |
|
Power Source |
Pneumatic |
|
Control Option |
Double Acting |
|
Mounting Standard |
ISO5211 |
|
Certifications |
SIL 3, CE |
|
Optional Modules |
Pneumatic accessories, brackets |
| Valve Compatibility | Ball valve, butterfly valve |
| Manual Operation | NO |
| Customization Options | Color, material, temperature |
| Angle Flexibility | 0°–90° (±6° tolerance) → meets industrial process angle needs; flexible control across applications. |
| Pressure Adaptability | 2–10bar (29–145psi) → suits diverse pressure conditions; ensures stable operation in all environments. |
| Internal Rod Design | Sleek, compact (smaller outer diameter vs. external rod designs); stabilizes piston, reduces wear → longer cylinder lifespan, reliable performance. |

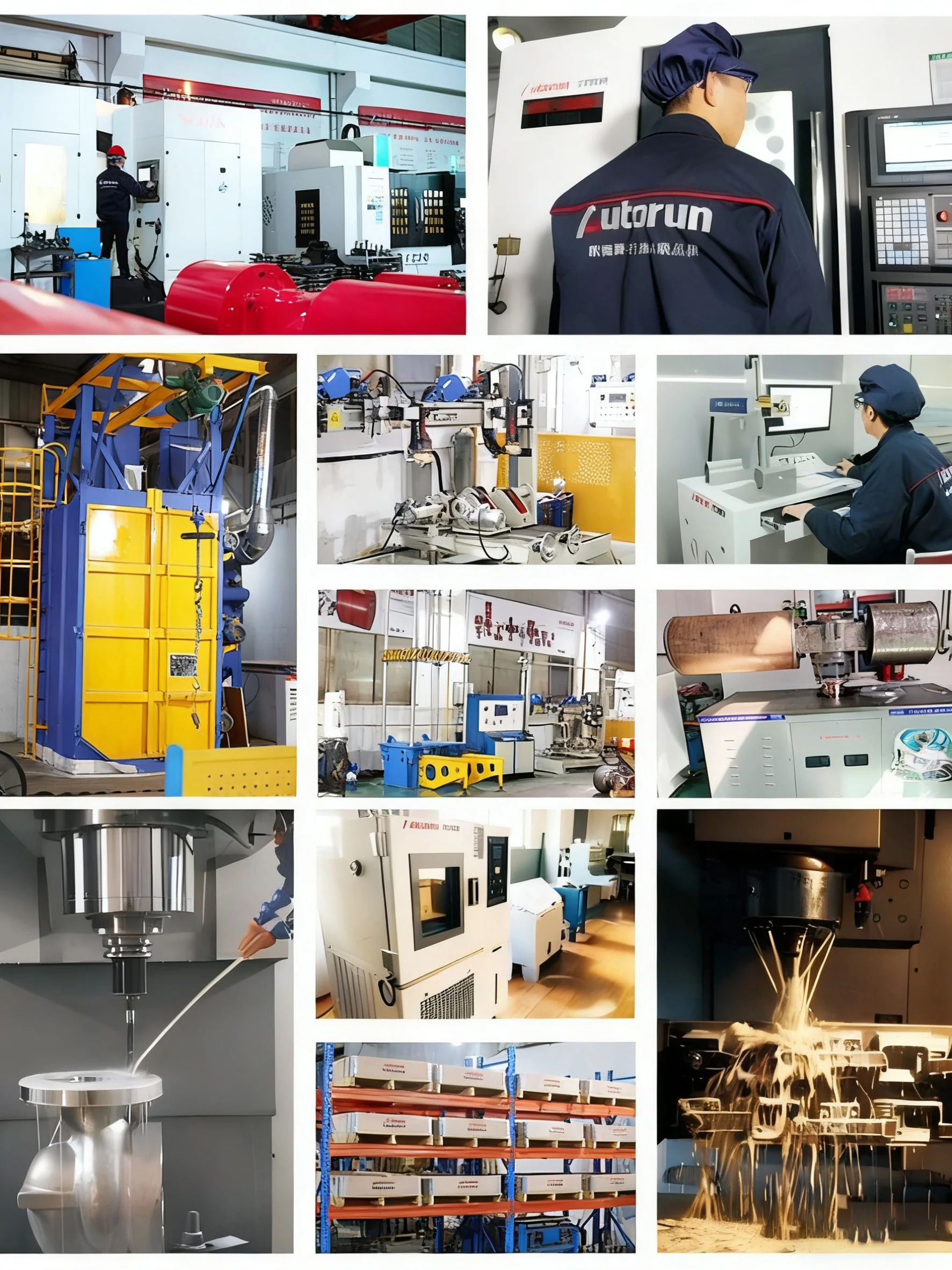

Our Workshop
