Description

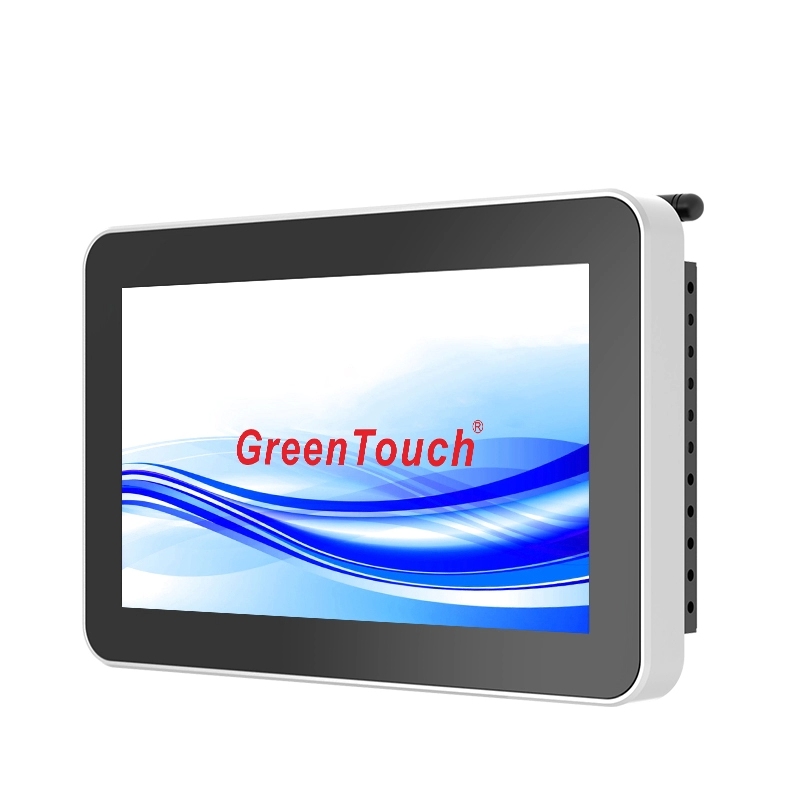

The Close Frame Touch Panel PC 7-27 Inches (3A Series) is an industrial-grade Android touch panel computer designed for commercial, industrial, and self-service applications. Powered by Rockchip RK3566, RK3568, or RK3588 processors, this all-in-one solution combines responsive multi-touch operation, Full HD/UHD display support, reliable computing performance, and flexible installation options in a compact aluminum enclosure.
Available in sizes ranging from 7 to 27 inches, the Close Frame Touch Panel PC 7-27 Inches (3A Series) is suitable for interactive kiosks, factory automation, digital signage, retail systems, medical terminals, transportation equipment, and intelligent building control.
Product Information
Product Name: Close Frame Touch Panel PC 7-27 Inches (3A Series)
Processor Options:
-
Rockchip RK3566
-
Rockchip RK3568
-
Rockchip RK3588
Operating System: Android
Memory: 2GB–8GB RAM
Storage: 32GB–64GB SSD
Expandable Storage: TF Card Supported
Operating Temperature: -20°C to 70°C
Touch Technology: Projected Capacitive Multi-Touch
Mounting Options: Embedded, Wall Mount, Desktop
Key Features of Close Frame Touch Panel PC 7-27 Inches (3A Series)
Powerful Android Computing Platform
The system utilizes high-performance Rockchip processors with low power consumption, providing stable performance for continuous operation in commercial and industrial environments. The processors support demanding applications such as interactive displays, industrial control, multimedia playback, and self-service terminals.
Industrial Multi-Touch Display
The Close Frame Touch Panel PC 7-27 Inches (3A Series) features projected capacitive touch technology supporting up to 10 simultaneous touch points. Optical bonding technology improves touch accuracy while reducing internal reflections for enhanced image clarity.
Benefits include:
-
Fast touch response
-
Accurate positioning
-
Smooth gesture control
-
Stable long-term operation
Wide Screen Size Selection
To meet different installation requirements, the product is available in multiple display sizes and aspect ratios.
16:9 Models
-
7"
-
8"
-
13.3"
-
14"
-
15.6"
-
18.5"
-
21.5"
-
23.6"
-
23.8"
-
27"
16:10 Models
-
10.1"
-
22"
5:4 Models
-
8"
-
9.7"
-
10.4"
-
12.1"
-
15"
-
17"
-
19"
The wide product range allows customers to select the most suitable display size for their equipment or project.
Durable Industrial Construction
Designed for continuous operation, the Close Frame Touch Panel PC 7-27 Inches (3A Series) incorporates industrial-grade LCD panels that offer long service life and reliable image performance.
The aluminum alloy frame and painted aluminum rear housing provide:
-
Excellent structural strength
-
Improved heat dissipation
-
Modern industrial appearance
-
Long-term durability
Black and silver housing options are available to suit different installation environments.
IP65 Front Protection
The front panel is designed with IP65 protection, helping resist water, dust, and other contaminants commonly found in industrial and public environments.
This makes the panel PC suitable for:
-
Manufacturing facilities
-
Retail environments
-
Outdoor kiosks with protective enclosures
-
Public information terminals
-
Food processing equipment
-
Medical facilities
High Visibility Display
The display offers excellent visibility even under bright ambient lighting, making it suitable for installations exposed to sunlight or strong indoor illumination.
Connectivity
The Close Frame Touch Panel PC 7-27 Inches (3A Series) includes multiple interfaces for easy integration with peripheral devices and industrial equipment.
Available ports include:
-
HDMI
-
DC 12V Power Input
-
Gigabit LAN
-
USB
-
TF Card Slot
-
Audio Output
All connectors are positioned on the rear panel with downward-facing orientation, helping simplify cable management and installation.
Wireless Communication
Built-in networking features include:
-
Gigabit Ethernet
-
802.11 b/g/n Wi-Fi
The combination of wired and wireless connectivity provides flexible deployment across commercial and industrial networks.
Flexible Installation Methods
The Close Frame Touch Panel PC 7-27 Inches (3A Series) supports multiple installation options to accommodate different application scenarios.
Embedded Installation
Compatible with standard VESA mounting patterns:
-
75 × 75 mm
-
100 × 100 mm
Embedded installation creates a clean, flush-mounted appearance suitable for kiosks, industrial cabinets, and equipment panels.
Wall Mount Installation
Standard VESA mounting allows installation using:
-
Wall brackets
-
Display arms
-
Pole mounts
-
Ceiling mounts
Both landscape and portrait orientations are supported.
Desktop Installation
Using standard VESA-compatible desktop brackets, the panel PC can be installed on workstations, reception counters, operator stations, and customer service desks.
The modular mounting system also allows easy removal for maintenance or relocation.
Customization Options
The Close Frame Touch Panel PC 7-27 Inches (3A Series) supports a wide range of customization services to satisfy different OEM and ODM requirements.
Optional customization includes:
-
Integrated camera
-
USB Type-C interface
-
Custom display sizes
-
Custom logo
-
Housing color
-
Enclosure design
-
Customized packaging
These options help customers develop products that match their branding and application requirements.
Typical Applications
The Close Frame Touch Panel PC 7-27 Inches (3A Series) is suitable for numerous commercial and industrial environments, including:
-
Self-service ordering kiosks
-
Self-checkout terminals
-
Retail POS systems
-
Shopping mall information kiosks
-
Interactive advertising displays
-
Digital signage
-
Medical self-service terminals
-
Government queue management systems
-
Transportation ticketing machines
-
Smart building access control
-
Industrial HMI systems
-
Factory production line control
-
Workstation terminals
-
Equipment monitoring systems
Product Advantages
Industrial Reliability
Designed with industrial-grade components, the system supports long operating hours and stable performance in demanding environments.
Wide Operating Temperature
The operating temperature range of -20°C to 70°C enables reliable performance in both cold and high-temperature industrial conditions.
Excellent Expandability
Multiple interfaces, TF card expansion, Wi-Fi connectivity, and customizable hardware configurations allow flexible system integration.
Easy Installation
Three installation methods—embedded, wall-mounted, and desktop—allow the panel PC to fit a wide variety of commercial equipment and industrial control systems.
OEM & ODM Support
Customization options covering hardware configuration, appearance, branding, and packaging make the product suitable for equipment manufacturers, system integrators, and solution providers.
Why Choose Close Frame Touch Panel PC 7-27 Inches (3A Series)
The Close Frame Touch Panel PC 7-27 Inches (3A Series) combines industrial-grade reliability, responsive capacitive touch technology, flexible installation, and powerful Android computing into a versatile all-in-one solution. Supporting multiple screen sizes, customizable configurations, IP65 front protection, and stable performance across a wide temperature range, it is an excellent choice for manufacturers, system integrators, and commercial equipment suppliers seeking dependable touch computing solutions for industrial automation, smart retail, healthcare, transportation, and digital signage applications.
