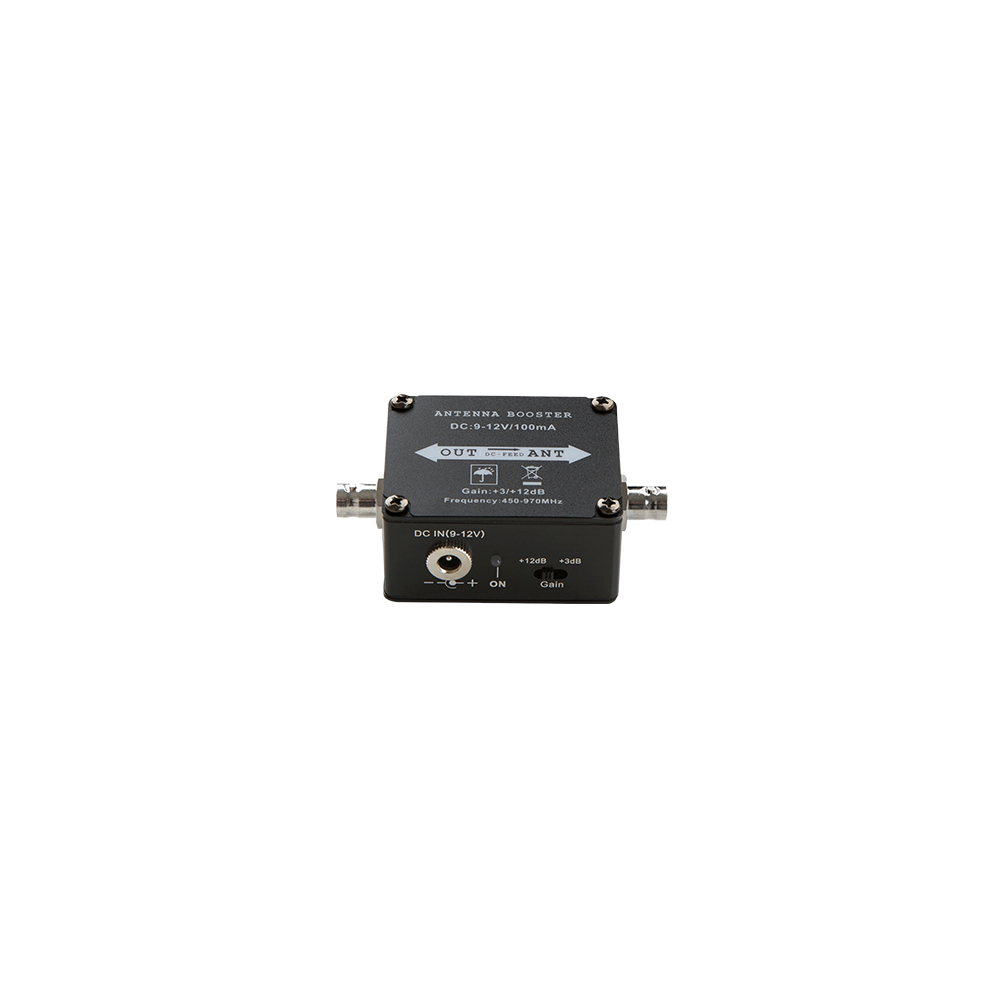

Description
This device is designed for professional wireless signal distribution systems, particularly for antenna receivers and multi-channel wireless setups. It effectively compensates for line loss, helping maintain stable signal reception in complex environments such as large stages, performance venues, and other high-interference locations.
The system is built to enhance overall transmission reliability while supporting flexible integration with existing wireless infrastructures.
Key Functional Features
-
Designed for professional wireless receivers and antenna distribution systems
-
Line loss compensation helps reduce signal degradation in large-scale or complex venues
-
Built-in antenna power supply function provides 12V / 150mA boost voltage, which can be fed to external antennas or repeater amplifiers
-
Dual-stage gain adjustment allows flexible tuning for different wireless environments and system requirements
-
Supports stable operation across multi-device and multi-receiver configurations
Technical Specifications
-
Frequency Range: 450–970 MHz
-
Gain: 3 dB / 12 dB (two-level adjustable)
-
Input Interface: BNC
-
Output Interface: BNC
-
Impedance: 50 Ω
-
Power Supply Voltage: DC 9–12 V
-
Antenna Boost Output: 9–12 V, 100 mA
-
Main Unit Dimensions: 89 × 51 × 31 mm (L × W × H)
Application Scope
This antenna distribution amplifier is suitable for:
-
Wireless microphone systems in stage performances
-
Conference and auditorium sound reinforcement systems
-
Broadcasting and live event setups
-
Multi-receiver wireless signal distribution environments
It provides stable signal enhancement and flexible gain control, making it suitable for professional audio and RF system integration scenarios.
