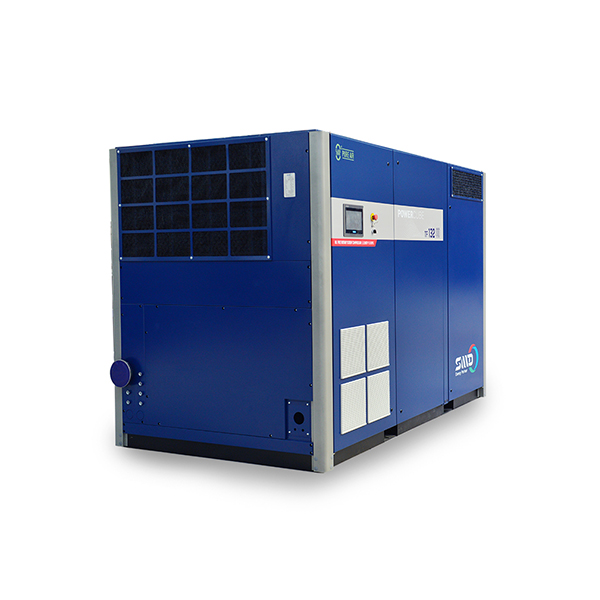

Dry oil-free screw compressor Double stage TF132

Description

TF110, TF132,TF160 seires

Double-stage oil-free screw compressor

Power: 110-160kW

Pressure range: 7 bar ≤ P ≤ 10 bar

Volume flow FAD：16.1-28.0m³/min

● Double compression stages, high compression ratio output.  The 1st stage delivers 2-3.5bar, and the 2nd stage relays to reach the user's required pressure.

● Efficient cooling diagram and optimized cooling layout make the two-stage compression close to isothermal cycle, in order to improve the compressor's efficiency.

● The airend, drivers, cooling system and etc. are modular designed, reducing the number of spare parts and making maintenance more convenient.

● Patented rotary screw profile

● Low rotation speed, high reliability

● SKF heavy-load rolling bearings

● Food grade high-temperature resistant coating applied on screw rotor surface

Modularization Concept

● Integrated design concept that integrates multiple performance and advantages；

● More outstanding efficiency – special design – easy maintenance – simpler components;

● Modular design, smaller footprint.

High efficiency oil-free compressor Air-end

● The first and second level materials are stainless steel；

● High rotary speed SKF bearing；

● Special coating，270℃ temperature resistance；

● Oil jacket cooling，No scaling or dew coagulation risk；

● High precision synchronous gear.

Efficient suction system

● Nanofiltration layer filter;

● Pneumatic suction valve combi. with offload venting function.

Independent oil pump

● Sufficient lubrication & cooling during start_up, stopping.

Separated Hot/Cold sector

● Air inlet pre filtration+blocking noise reduction design；

● Reasonable cooling air channels ensure rapid discharge of radiant heat；

● Efficient noise reduction processing box；

High quality cooling system

● The gas path is made of stainless steel material, which is more stable and durable；

● Water cooling unit:The cooler is made of stainless steel and has no corrosion issues;

● Air-cooled unit:Centrifugal fan, variable frequency control; Smoother exhaust;

● Low noise design.

Energy Saving Solution by VFD

For Smeaton oil-free compressor, VFD is available for both single stage and double stage machines.  Through efficient frequency inverter, thevolumtric flow of a screw compressor can be adjusted within a widerange. Due to the airend’s compatibility design, the speed regulation is smooth, effectively avoiding the shock impacted on the driving system;  as a result, not only the machine life is extended, but also the overall energy saving reaches 25% and more.

● Purposeful designed motor for VFD

● Built-in frequency inverter well match the motor

● Incorporated cooling of the inverter combined with the 1whole system

Intelligent HMI Control System

● Multiple languages

● Pragmatic protection functions

● Variety of input and output interface for writing and setting

● Standardized communication interface for group synergy

● Easy communication with the computerized control system

● Internet of Things function

● UL and CE certified

Lifetime Service and Technical Support

A completed set of solutions developed by SMEATON well manage the entire life  of compressor, to achieve the goal of the minimum maintenance cost and the best performance.
