Description

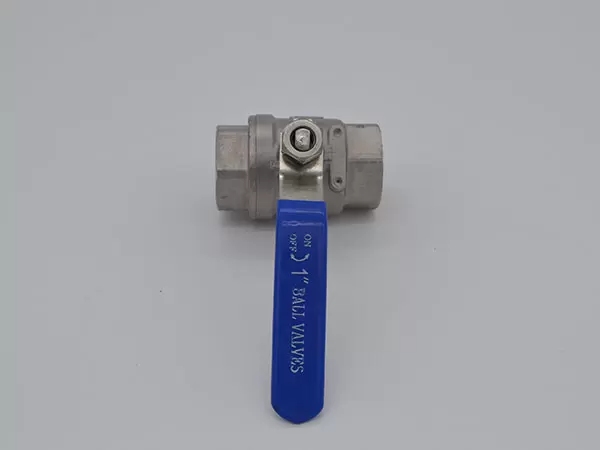

The Double Side Female Ball Valve is a high-precision industrial flow control component designed for reliable shut-off and regulation in compressed air, vacuum, and inert gas pipeline systems. With a double female threaded connection structure, it ensures stable installation, strong sealing performance, and flexible integration in modern fluid transport networks.
Product Overview
The Double Side Female Ball Valve is engineered for industrial piping systems requiring secure dual female-threaded connections. Its structure allows easy installation between pipeline components while maintaining excellent sealing performance and operational stability.
It is widely used in compressed air systems, vacuum systems, and inert gas applications such as helium, nitrogen, and argon, making it suitable for a wide range of industrial environments requiring precise flow control.
Key Features
-
Double female threaded connection for flexible pipeline integration
-
Suitable for compressed air, vacuum, and inert gas systems
-
Working pressure up to 16 bar
-
Temperature resistance range: -20°C to +80°C / -60°C to +180°C
-
Reliable sealing performance with stable flow control
-
Corrosion-resistant and wear-resistant construction
-
Compact and installation-friendly design
Material Construction
-
Sprayed aluminum alloy body for lightweight durability
-
Stainless steel internal components for corrosion resistance and strength
-
Engineering plastics for sealing stability and long service life
These materials ensure consistent mechanical performance, durability, and safe operation in demanding industrial environments.
Product Parameters
| S.N | Nominal Diameter (mm) | W (mm) | H (mm) |
|---|---|---|---|
| VV 1003 11 | G1/2" | 49.3 | 56.8 |
| 11 1003 11 | G3/4" | 100 | 28 |
| 22 1003 11 | G1" | 100 | 33 |
| 33 1003 11 | G1-1/4" | 80 | 40 |
| 44 1003 11 | G1-1/2" | 105 | 65 |
| 55 1003 10 | G2" | 115 | 75 |
Application Fields
The Double Side Female Ball Valve is widely used in:
-
Industrial compressed air pipeline systems
-
Vacuum piping and control systems
-
Inert gas distribution systems (nitrogen, argon, helium)
-
Industrial automation equipment
-
Energy and process control systems
-
Modular fluid transport networks
Company Introduction
Suzhou Jieyou Fluid Technology Co., Ltd., founded in August 2019, is a professional manufacturer specializing in the R&D, production, sales, and installation of advanced fluid transport systems.
The company provides UPIPE aluminum alloy piping systems and Liq-pipe solutions, recognized for safety, corrosion resistance, environmental protection, and long-term reliability.
With strong technical expertise and multiple patents, the company has obtained ISO 9001, ISO 14001, CE, and high-tech enterprise certifications. Its products are exported globally, serving customers across industrial, civil, and military sectors.
System Advantages
-
Safe and reliable flow control performance
-
Fast installation and convenient maintenance
-
Energy-efficient system operation
-
Strong anti-corrosion capability
-
Clean and environmentally friendly design
Ten-Year Quality Assurance
UPIPE series products are covered by a 10-year quality guarantee, ensuring free replacement or repair after proper installation, testing, and acceptance.
Warranty Exclusions Include (but are not limited to):
-
Expired warranty period without valid extension agreement
-
Damage caused by improper installation or misuse
-
Operation outside specified environmental conditions
-
Failure to follow installation or maintenance manuals
-
Corrosion, external impact, or incorrect handling
-
Unauthorized modification or system alteration
Summary
The Double Side Female Ball Valve delivers a reliable and efficient solution for industrial fluid and gas control systems. With its dual female-thread design, durable construction, and stable sealing performance, it ensures safe and long-term operation in compressed air, vacuum, and inert gas applications.
